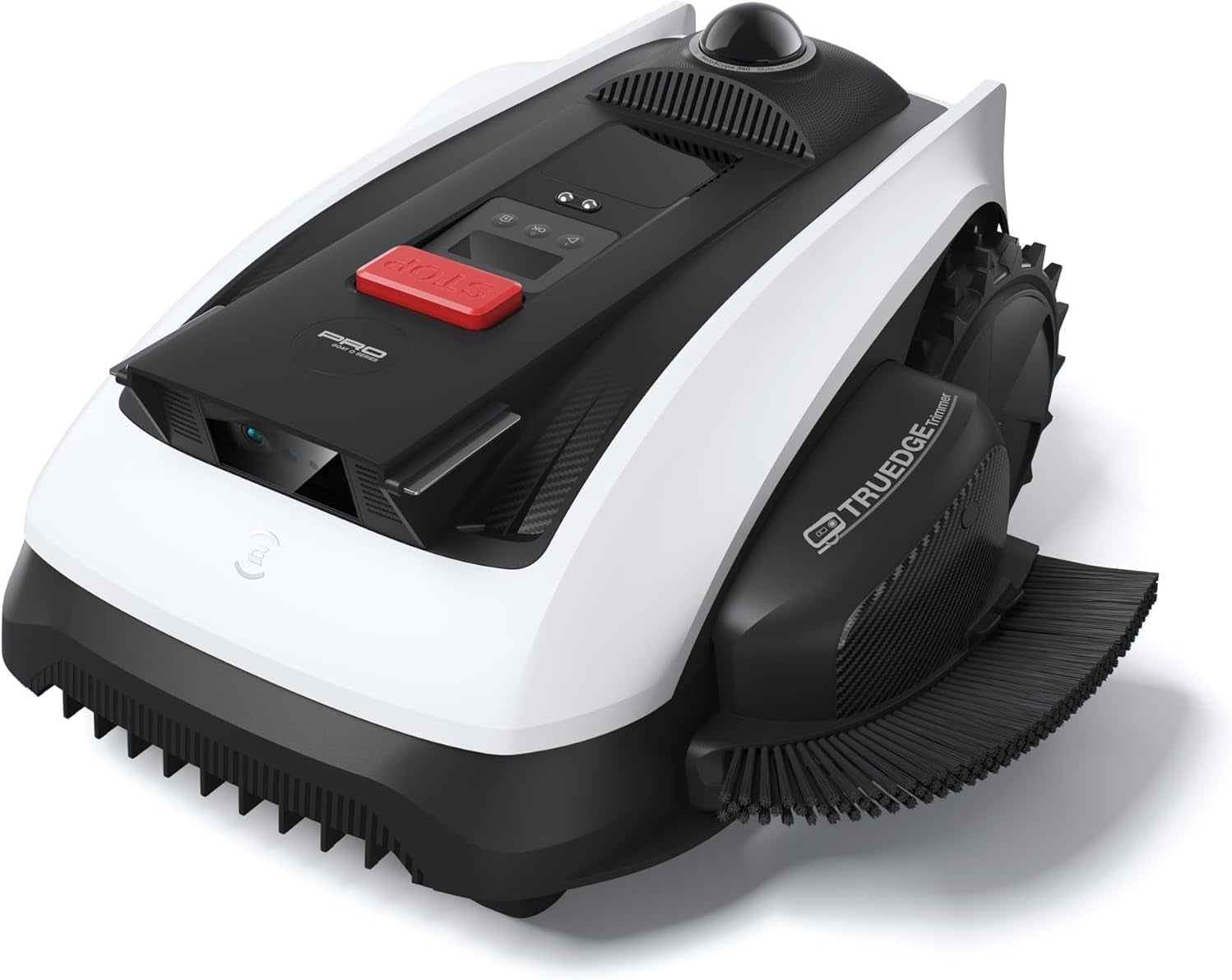

GOAT O1000 LiDAR PRO Wire-Free Robotic Lawn Mower with Edge Trimmer

GOAT O1000 LiDAR PRO Wire-Free Robotic Lawn Mower with Edge Trimmer combines HoloScope 360° Dual-LiDAR navigation, integrated TruEdge trimming, AI Vision obstacle detection, and customizable app controls. It requires no perimeter wire or RTK antenna and automatically maps the lawn with precise positioning, including under trees, near fences, and in shaded areas.

Specifications

• Navigation System: HoloScope 360° Dual-LiDAR

• Positioning Precision: 2 cm

• Obstacle Detection: AI Vision and 3D ToF LiDAR

• Recognized Obstacles: More than 200 types

• Detection Precision: Down to 5 cm

• Minimum Passage Width: 0.8 m

• Waterproof Rating: IPX6

• Network Requirement: 2.4GHz network with Bluetooth enabled

Features

• Wire-Free Navigation: Operates without perimeter wires or an RTK antenna and automatically maps the yard using Dual-LiDAR technology.

• Stable Positioning: Maintains precise navigation under trees, near fences, and in shaded areas without relying on GPS positioning.

• Integrated TruEdge Trimmer: Trims along driveways, sidewalks, flower beds, and irregular lawn borders to reduce the need for manual string trimming.

• Adjustable Trimming: The trimmer angle can be adjusted during installation when additional alignment is required.

• AIVI 3D Obstacle Avoidance: Identifies and navigates around more than 200 types of obstacles, including toys, patio furniture, pets, and small wildlife.

• Customizable Mowing: The app allows you to create mowing zones, adjust schedules, select boundaries, and establish no-go areas.

• Narrow-Path Access: The super-narrow body can travel through lawn corridors and paths as slim as 0.8 m.

• Efficient Mowing Paths: Uses automatic mapping and navigation to follow organized routes across the lawn.

Trimmer Installation

• Included Screws: Use the 3 included screws, consisting of 2 spare screws and 1 pre-installed screw.

• Recommended Tool: A PH2 Phillips screwdriver longer than 10 cm is recommended.

• Installation Access: Open the side rubber cap to access the mounting holes and adjust the angle slightly if alignment is tight.

Operation

• Manual Trimming: Select Trim mode in the app, choose the boundary, and tap start.

• Scheduled Trimming: Set a fixed start time through the Schedule controls for automatic operation.

• Noise Consideration: Trimming is louder than mowing, so daytime scheduling is recommended to avoid disturbing neighbors.

Maintenance

• Before Trimming: Clear obstacles from lawn boundaries to keep the vision system unobstructed.

• Boundary Setup: Avoid edges with 5–7 cm (2–3 in) steps to reduce the risk of the trimmer becoming stuck.

• Sharp Corners: Map sharp corners slightly inward to reduce contact with walls or rocks and help prevent the trimmer line from snapping.

• Trimmer Line: Press the button on the trimmer cover to manually release and pull out a line segment.

Network Setup

• Connection: Use a 2.4GHz network and ensure Bluetooth is enabled.

• Signal Strength: Move the mower closer to the router if a stronger signal is required.

• Pairing: Press and hold the charging button until the countdown ends.

• Troubleshooting: Restart the mower if the connection issue continues.
